Echo Dot Wall Mount

posted Feb 21, 2017, 8:55 AM by cloud POS   [ updated Feb 21, 2017, 8:58 AM ]

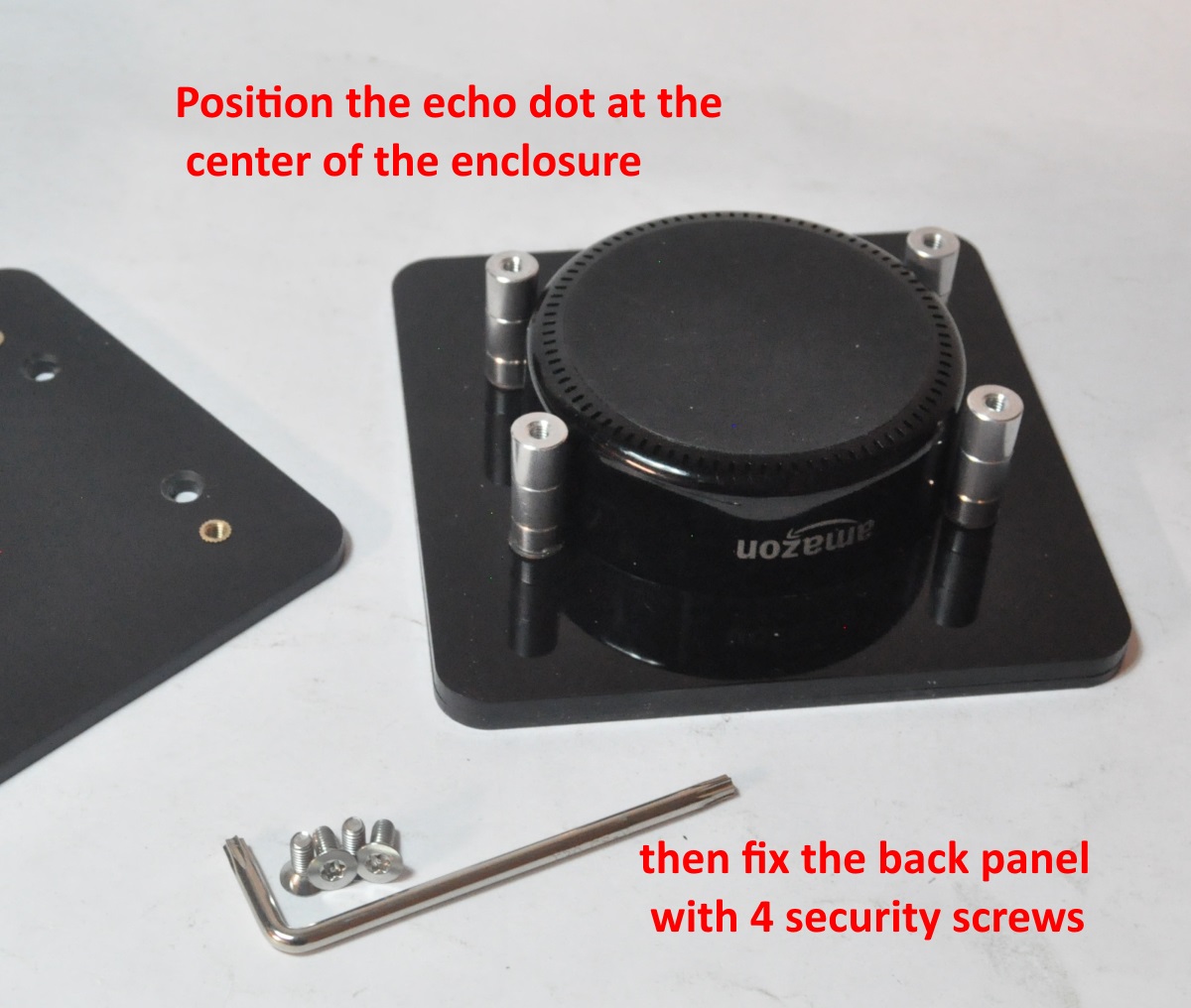

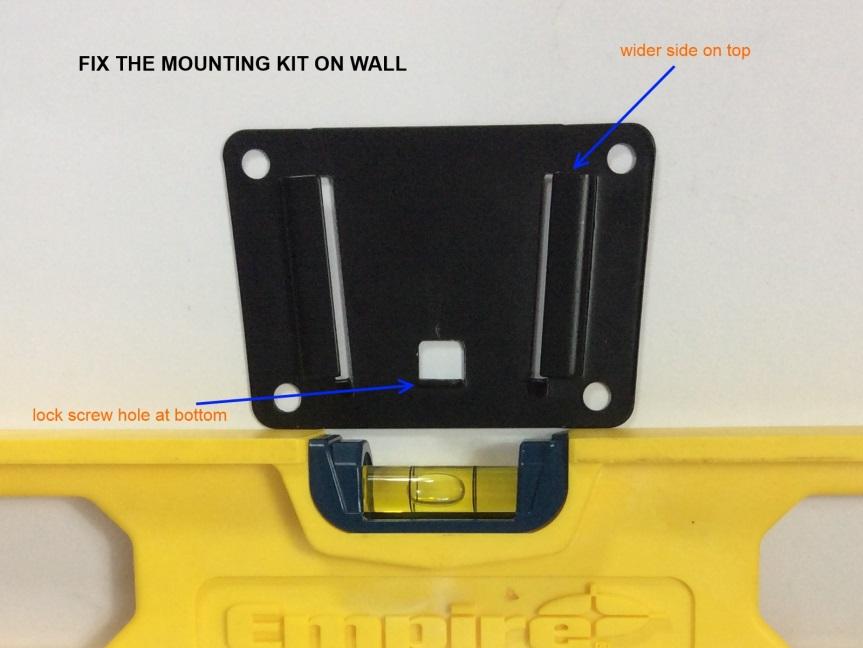

Echo Dot 2nd Gen. Wall Mounting Kit Quick Guide






Echo Dot 2nd generation Wall Mount Kit






www.posincloud.com

718-690-7653

info@posincloud.com


Swivel EZ Stand Installation Guide

posted Dec 30, 2016, 10:54 AM by cloud POS   [ updated Dec 30, 2016, 10:59 AM ]

EZ Tablet Kiosk Stand Installation Guide


  1. The EZ Stand comes with one front panel, one back panel, 8 security screws, one screwdriver, one round swivel base with 3M VHB tape, and one locking cap.

  2. Place the front panel on a smooth surface and properly sit the tablet within the alignment pegs, apply the back pane on top of the tablet and lock the security screws with bundled screw driver.

  3. Make sure the tablet is placed at the right position where you can access the power, volume, headset jack, and charge port easily.

  4. swivel5.jpgTo secure the stand on a tabletop, first fix the round locking base(with the 3M VHB tape at bottom) on the surface of the tabletop, then align the stand’s round locking slot to the base to it, then apply the locking cap on top and secure it by 3 security screws. This setup will allow you to swivel the stand on the table.

  1. To fix the stand without swiveling function just apply the bundled double-sided adhesive pad to the bottom of the stand, or use one to two screws to fix it through the locking holes(5mm) ipadmini_ez_1.jpg

  2. For more details information about our products and support you can visit our web site at www.tabcare.com or call us at 718-690-7653




Swivel Desktop Stand Installation Guide

posted Dec 9, 2016, 10:05 PM by cloud POS   [ updated Dec 13, 2016, 8:50 AM ]

TABcare Security Desktop Stand Installation Guide

  1. The Security Desktop Stand comes with one VESA kit, one desktop stand, 13 security screws, one screwdriver, one round swivel base with 3M VHB tape, and one locking cap.

  2. Place the front panel of the VESA kit on a smooth surface and properly sit the tablet within the alignment pegs, apply the back pane of the VESA kit on top of the tablet and lock the security screws with bundled screwdriver.

  3. Make sure the tablet is placed at the right position where you can access the power, volume, headset jack, and charge port easily.

  4. Decide the display mode – portrait or landscape you want to use, align the four VESA holes (100 x 100mm) on the VESA kit to the equivalent VESA holes on the desktop stand then fix them together  by the bundled four M4x10 screws.

  5. To secure the stand on a tabletop, first fix the round locking base(with the 3M VHB tape at bottom) on the surface of the tabletop, then align the stand’s round locking slot to the base to it, then apply the locking cap on top and secure it by 3 security screws. This setup will allow you to swivel the stand on the table.swivel5.jpgswivel4.jpg

  6. To fix the stand without swiveling function just apply the bundled double-sided adhesive pad to the bottom of the stand, or use one to two screws to fix it through the locking holes(5mm)

  7. For more details information about our products and support you can visit our web site at www.tabcare.com or call us at 718-690-7653nook7_blk5.jpg


Swivel Desktop Stand Installation Guide



Swivel EZ Stand Installation Guide


Smart Display VESA Kit Installation Guide

posted Nov 13, 2016, 8:08 AM by cloud POS   [ updated Nov 13, 2016, 8:09 AM ]

TABcare Security VESA Kit Installation Guide

  1. This Security VESA Kit is compliant with VESA 100x100mm standard, you can mount it on any VESA mounting hardware likes VESA wall mount kit or VESA desktop kit. It comes with one front panel, one back panel, security screws and screwdriver.

  2. First, place the front panel of the VESA kit on a smooth surface and properly sit the tablet within the alignment pegs, apply the back pane of the VESA kit on top of the tablet and lock the security screws with bundled screwdriver.

  3. Make sure the tablet is placed at the right position where you can access the power, volume, headset jack, and charge port easily.

  4. Now the enclosure is ready to mount on any VESA mounting H/W with 100x100mm holes! Decide the display mode – portrait or landscape you want to use, align the four VESA holes (100 x 100mm) on the VESA kit to the equivalent VESA holes on the mounting H/W, fix them together by the bundled four M4x10 screws.

  5. You can purchase the VESA kit with wall mount kit or desktop stand as well, for more details information about our products and support you can visit our web site at www.posincloud.com or call us at 718-690-7653



www.posincloud.com


Smart Display Desktop Stand Quick Installation Guide

posted Sep 17, 2014, 11:24 AM by cloud POS   [ updated Sep 17, 2014, 11:31 AM ]

1. Items included

2. tablet to the enclosure

3. Secure the screws

4. VESA Stands

5. Attach Stand to VESA Enclosure

6. Assembled


Smart Display Wall Mount Kit Quick Installation Guide

posted Sep 5, 2014, 11:17 AM by cloud POS

1. Make sure you got all the wall mounting kit items

2. Place the tablet into the enclosure, use the security screws to secure the tablet

3. Attach the the bigger piece to the VESA holes at the back panel.

4. mount the smaller piece on wall by proper tools

5. slide the enclosure from top and fix the lock screw at the bottom

Quick Notes for Line Item (available on 1.46 or later)

posted Jul 11, 2014, 1:57 AM by cloud POS   [ updated Jul 15, 2014, 11:40 AM ]


Now without creating a "option group", you can easily add a quick note under each line item, even with the price adjustment function.

The "Quick Notes" function button can be found at the bottom of the line item edit window -

Click at the "quick Notes" bar, a "quick Notes" edit window will replace the option items display window, just click at the action buttons on the left and item buttons on the right you want to add to the line item description. For example - "No Onion", you need to select the "no" and "onion" button, (the selected buttons color will be switched to heavy) and then click at "+" button to add this comment(note) to the line item description. you can always un-select the buttons by clicking at them again. Click at "<" button will bring you back to original edit window.

Whatever notes you added to the line item will be appended to the line item description, if there is "price adjustment", the adjusted price will be the new price for the line item.

Click at "OK" to finish the line item editing, you will see the line item description and price has been updated -

To create and edit the Quick Note contents, you will need to go to the "Settings" then select "Database" tab, there is a section named "Update Speed Options", click at the pen icon to enter.

For the quick options(notes), there are two type of notes - action(verb) and item(noun), you can click at the tabs on the left side to see the detail listing. Click at "New Option" button the the top right to create new note(option), to edit the current notes just click at their name.

There are four fields for each note -
1. Name: the name of the note
2. Type: Action(Verb) or Item(Noun)
3. Adjust: the adjustment amount once this note has been selected, only apply to "item" note not "action" note. The adjustment value will be shown on the button (after the name)
4. Priority: higher priority notes will be displayed before the lower priority notes

Receipt Printer Characters Per Line Setting

posted Jul 7, 2014, 10:37 AM by cloud POS

To use the ESC/POS compatible printers, please make sure the "characters per line" setting need to set to 48 which is our default setting for TEXT receipt printers. If you have no way to change the settings, and the print-out is not aligned correctly -

You can try to change the setting of  "Receipt width" which is under the "Settings" -> "Printer"
Try to reduce the value to smaller than 1.0 (like 0.8) to get the best result.

Smart Display Acrylic Dock Station for iPad 2/3/4 & Air Installation Guide

posted Apr 24, 2014, 1:58 AM by cloud POS   [ updated Jul 14, 2014, 10:01 PM ]

The Smart Display Dock Station for iPad comes with
  1. bottom base
  2. front cover
  3. four security screws
  4. one security screw drive
  5. four cushion pads (optional)
  6. one cushion plate (for iPad Air)
  7. two plugs (for iPad Air)


The cushion plate is for iPad Air only, put it on the bottom base and install the two plugs which are used to align the vertical position for iPad Air, remove them if you are using the dock station for iPad 2, 3 or 4th generation.The slots for the power cord are used when you need to route the power cord through the center hole of the base or through the top of the base.
If the iPad is very easy to shift after fixing the screws, then you can consider applying the cushion pads on the bottom base for iPad to compensate the height of the device.

You can route the power cord to the top open slot or the middle hole of the dock base.

Guided Access Mode - Disable the HOME Button
If you want to disable the HOME button without physically blocking the button then remember to turn on the "Guided Access" mode under iPad settings, for more information you can reference here.

Smart Display for iPad User's Manual

posted Feb 9, 2014, 9:44 PM by cloud POS   [ updated Feb 27, 2014, 6:53 PM ]

The Smart Display is an add-on iPad App for the POS IN CLOUD system , it offers the electronic menu, orders status dashboard, slideshow, video play and web page browse functions. This is a FREE App compatible with Apple iPad and iPad mini with iOS 5.0 or higher.



Smart Display for iPad Control Panel

The menu mode allows the user to browse all the available items under the POS IN CLOUD store, they are categorized and displayed by row, each item has its name, description, price and picture.
Menu Mode Example

The Slideshow mode plays the feature pictures which selected from the store or reference to the internet images which give you the real time update feature  without manually change the settings.
slideshow mode (landscape style)

The Video mode allow the iPad playing the video you assigned repeatedly. The video can be uploaded or an video has internet URL.
video mode (portrait style)

The Web Page mode switch your web site into a App-like application, user can only allow browse under your own site no navigation bar to access other web site.
     web page mode

------ System Setup Instructions ----------------------------------------------------------------------

The very first time you open the App, the Set Up(Settings) Page will be brought up to ask for the basic settings, it is OK to run the three different display modes without changing anything, however, there are just demo materials for you to learn how it works.

Set Up page need to know -
#1.  The yellow Navigation button allow you to jump to the display mode you want.

#2. Create and update password for the Kiosk Settings Page, this is very important feature for the Kiosk App since you do not want everybody can change your settings or contents.

#3.Slideshow Mode : Here you can upload and manage the pictures for slideshow

#4. Video Mode : Here you can assign the video you want to play

#5. Web Page Mode : To lock the iPad to specified web site, it works just like your web site is an iPad App

6. Guide Access :  The instructions to set up the iPad works at "Guide Access" mode

7. Security Enclosures : To secure the iPad on the desktop or wall, you will need the security enclosure

8. About Us :

--------------- Menu Bar ---------------------------------------------

The top menu bar shown during the individual setup screen -


System Settings - back to setup home screen


Web Page - jump to specified web page


Slideshow - jump to slideshow


Video - jump to video play mode


Home - return to home page during "Web Page" operation

6. HELP - open the user's manual

The pop-out menu icons (on top) can be found during the playing modes when user touch the screen

 Jump to slideshow mode
 switch to video mode
switch to Web Page mode

------------- Slideshow Setup Screen ----------------------------------------------
Update and add new pictures for the slideshow here, you can change the settings of the slideshow as well.

Slideshow Type - Fading, sliding in
Sliding Direction - Horizontal and vertical
Duration - each slide display time, with choices : 4 seconds(default), 8, 15 and 30 seconds
menu links - allow user to see the links when touch the screen

To add a new picture to the slideshow list -
You can enter the URL of the image on internet or upload the picture from local photo gallery

------------ Video Setup Screen ------------------------------------------------------
The only video format allowed - MP4
menu links - allow user to see the links when touch the screen
video select - pick one of the video to play from the list

To add a new video to the video list
You can enter the URL of the video on the internet or upload a video file on local file library.

------------ Web Page Setup Screen -------------------------------------------
URL To Display - the URL of the Web Page you want to display
Show Top Menu - YES/NO
Menu Links - settings, slideshow, video
