Smart Display VESA Kit Installation Guide

posted Nov 13, 2016, 8:08 AM by cloud POS   [ updated Nov 13, 2016, 8:09 AM ]

TABcare Security VESA Kit Installation Guide

  1. This Security VESA Kit is compliant with VESA 100x100mm standard, you can mount it on any VESA mounting hardware likes VESA wall mount kit or VESA desktop kit. It comes with one front panel, one back panel, security screws and screwdriver.

  2. First, place the front panel of the VESA kit on a smooth surface and properly sit the tablet within the alignment pegs, apply the back pane of the VESA kit on top of the tablet and lock the security screws with bundled screwdriver.

  3. Make sure the tablet is placed at the right position where you can access the power, volume, headset jack, and charge port easily.

  4. Now the enclosure is ready to mount on any VESA mounting H/W with 100x100mm holes! Decide the display mode – portrait or landscape you want to use, align the four VESA holes (100 x 100mm) on the VESA kit to the equivalent VESA holes on the mounting H/W, fix them together by the bundled four M4x10 screws.

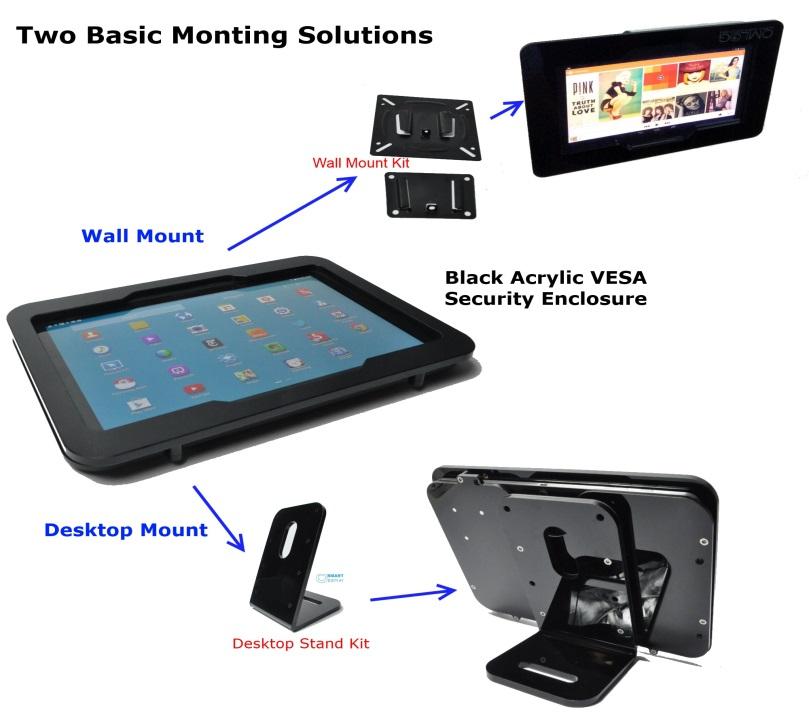

  5. You can purchase the VESA kit with wall mount kit or desktop stand as well, for more details information about our products and support you can visit our web site at www.posincloud.com or call us at 718-690-7653
